Vegetable and Fruit Texture Analyzer & Solution

Ripeness and Firmness Analysis

Precise measurement for fruits and vegetables

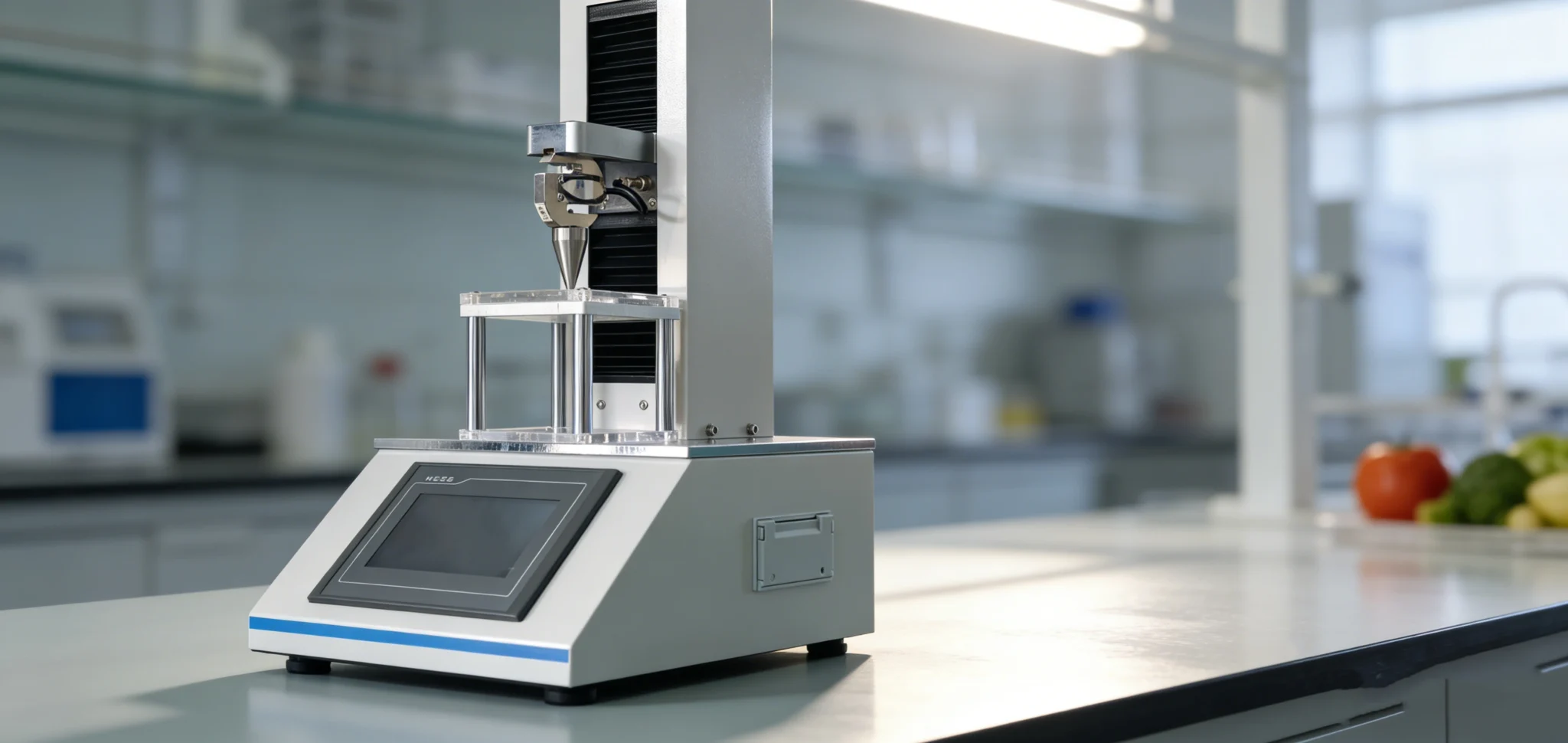

Introduction to Vegetable and Fruit Texture Analyzer

The Vegetable and Fruit Texture Analyzer by Cell Instruments is designed specifically for measuring firmness, ripeness, and textural properties of fruits and vegetables. It provides reliable, reproducible, and objective data for growers, processors, and quality control teams. By simulating real-world forces such as compression, penetration, and tension, the instrument ensures that produce—from apples and pears to tomatoes, cucumbers, and peppers—meets desired consistency and quality standards.

Ensure the fruit and vegetable quality

What Is Vegetable and Fruit Texture Analysis?

Texture analysis evaluates the resistance of fruits and vegetables to compression, penetration, and deformation. Key metrics include:

  • Firmness / Hardness: Resistance to deformation, essential for ripeness assessment

  • Resilience: Ability to recover shape after compression

  • Cohesiveness: Structural integrity during handling or processing

  • Springiness: Elastic recovery after a bite-like force

These metrics provide insight into storage stability, consumer acceptability, and processing performance.



quantify texture and firmness

Principle

The analyzer works by applying a controlled compressive or penetration force using various probes. Resistance is recorded in real-time, generating force-time curves for quantitative analysis. Adjustable parameters simulate:

  • Compression: Mimics bite or handling pressure

  • Penetration: Measures skin hardness for tomatoes, grapes, etc.

  • Two-Bite / TPA Test: Simulates chewing to evaluate hardness, cohesiveness, springiness, and resilience



Choose the right analyzer

Testing Methods

Single Compression Test: Measures maximum firmness.

Penetration Test: Evaluates skin resistance and puncture firmness.

Two-Bite / TPA Test: Simulates chewing to analyze sensory attributes.

Cycle Compression / Hold Tests: Monitor textural changes over time for processed produce.



Choose the right analyzer

Cell Instruments Models and Accessories

Feature / ModelTEX-01TEX-02TEX-01Pro
Test Range50 kg (or other)20 kg (or other)50 kg (or other)
Stroke (jig excluded)250 mm110 mm250 mm
Speed1–500 mm/min1–500 mm/min1–500 mm/min
Resolution0.5% F.S.0.5% F.S.0.5% F.S.
Dimensions (L×W×H mm)410×360×820450×300×360410×360×820
PowerAC 110–220VAC 110–220VAC 110–220V
Key Test MethodsGel Strength, Hold to Load, Hold Time, Fixed Deformation, Single Compression, Hardness & Fracturability, Fixed Load, Cycle Compression, Bloom Test, TensileGel Strength, Hold to Load, Hold Time, Fixed Deformation, Single Compression, Hardness & Fracturability, Fixed Load, Cycle Compression, Bloom Test, TensileAll TEX-01/TEX-02 tests + Full Texture Profile Analysis (TPA / Two-Bite Test)

Accessories:

  • Test Probes: Cylinder, cone, or needle probes for different fruits and vegetables

  • Fixtures: Custom trays for round or soft produce

  • Software Integration: Data recording, analysis, and reporting for R&D and QC

  • Microprinter: Automatic printing of results for record keeping

Vegetable and Fruit Texture Analyzer & Solution​

Advantages of Cell Instrument Texture Analyzer

Vegetable and Fruit Texture Analyzer & Solution​

  • Professional Manufacturer Background: Years of experience in food and agricultural testing instruments.

  • Advanced Customization: Custom probes, software, and automation for specific testing needs.

  • Comprehensive Support: Training, remote assistance, and calibration services minimize downtime.

  • Multi-Application Flexibility: Supports single compression, penetration, TPA, cycle compression, and hold tests.



Choose the right analyzer

Applications of Vegetable and Fruit Texture Analyzer

Applications of Vegetable and Fruit Texture Analyzer
Ensure produce quality from harvest to market.

  • Harvest Assessment: Determine the ideal picking time based on firmness

  • Post-Harvest Quality Control: Monitor textural changes during storage and transport

  • Product Development: Optimize texture in processed fruits, juices, or ready-to-eat vegetables

  • Shelf-Life Studies: Track softening, ripening, and deterioration over time for better storage management.

  • Research: Correlate instrumental data with sensory evaluation

FAQs

Which fruits and vegetables can be tested?

Apples, pears, tomatoes, cucumbers, peppers, berries, and processed produce like purees.

Yes, the TEX-01Pro model provides full TPA functionality, including resilience and chewiness analysis.

Results can be exported via integrated software or USB for detailed analysis and reporting.

Yes, cylinder, cone, and needle probes are available, with optional custom sample fixtures.
